99% Alumina ceramic tubes ceramic rods

99% Alumina ceramic tubes ceramic rods

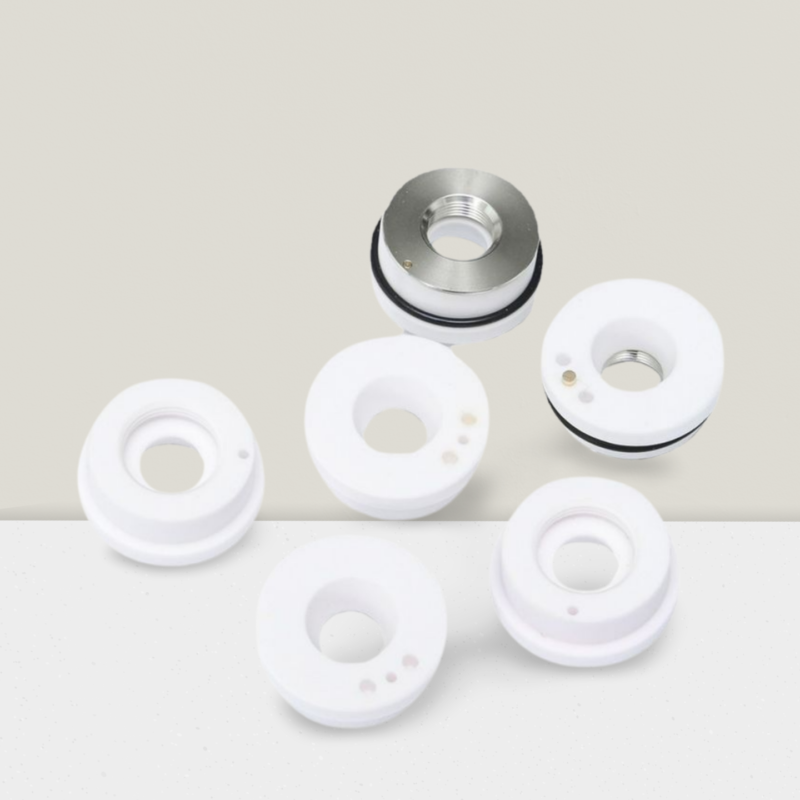

99% alumina parts

Ceramic tubes/rods made of Al2O3 can be used in a variety of ways thanks to their excellent properties, especially in the high temperature range. Glass manufacturers use the tubes for process control.
Our tubes are also used in thermal analysis to measure the thermal expansion of materials thanks to their good dimensional stability at high temperatures.
In electrically heated ovens, the tubes are used to precisely position the heating wires. Thanks to the extraordinary abrasion resistance of ceramic materials, ceramic tubes are also used as fiber guides with a very long service life.



Properties

Units

95%
Al2O3

99%
Al2O3

99.5%

Al2O3

Colour

White

Ivory

Ivory

Density

g/cm3

3.5

3.85

3.9

Flexural Strength

Mpa

280

340

350

Compressive Strength

MPa

2100

2200

2350

Max Use Temperature

°C

1400

1650

1650

Thermal Condutivity

W/m.K

16~28

19~30

19-31.4

Thermal Expansion Cofficient

10-6/°C

6.5~7.5

6~8

8

Thermal Shock Resistance

K

150

150

200

Specific Heat

J/kg.K

950

950

950

Dielectric Strength

KV/mm

10

12

18

Dielectric Constant

Er

9

9

10
