Cerafix type anchors ceramic spike and ceramic washer
Cerafix type anchors ceramic spike and ceramic washer

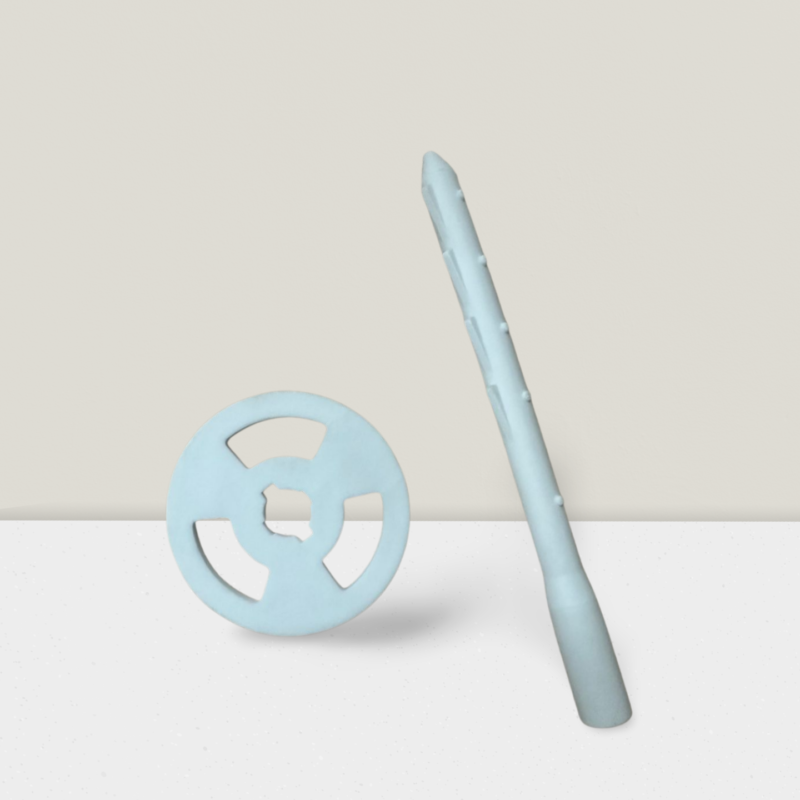

A complete set of 95% ceramic stud/ceramic spike and ceramic washer
Anchors for fibers with content 95 % Al2O3, the cerafix system is used with the presence of high corrosion with temperatures that can reach up to 1500°C.
Exists in 2 lengths CERAFIX 1 : 70 mm and CERAFIX 9 : 120 mm.
Description:
The CERAFIX anchor is a combination of ceramic and metallic anchoring which is suitable for fiber blankets, boards or fiber blocks.

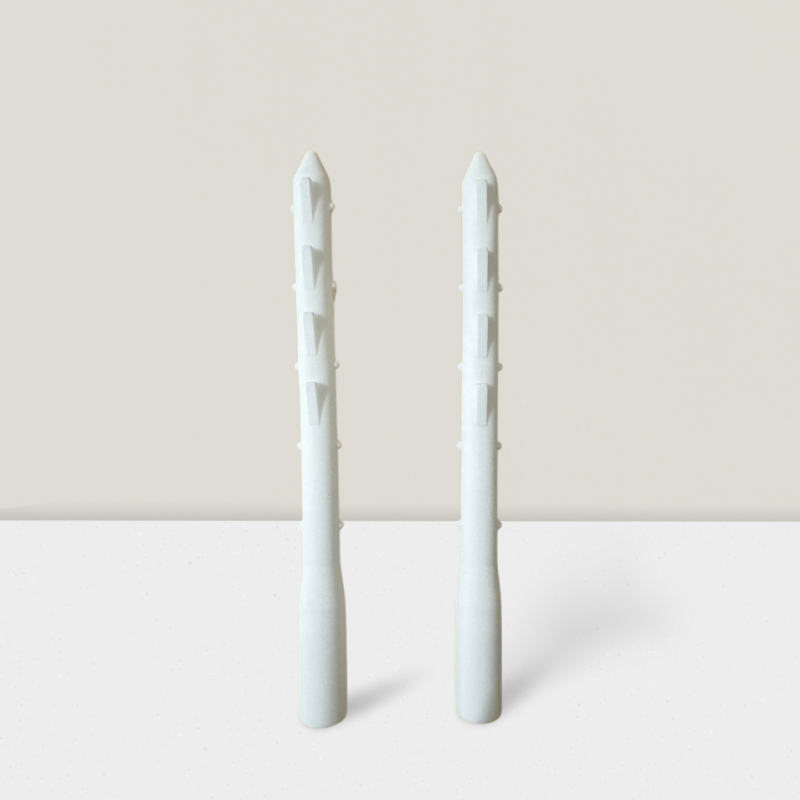

The 95% ceramic spike is anchored to the vessel with a 6 mm threaded stud. The threaded stud can be quickly produced in specified lengths to accommodate various lining thickness.

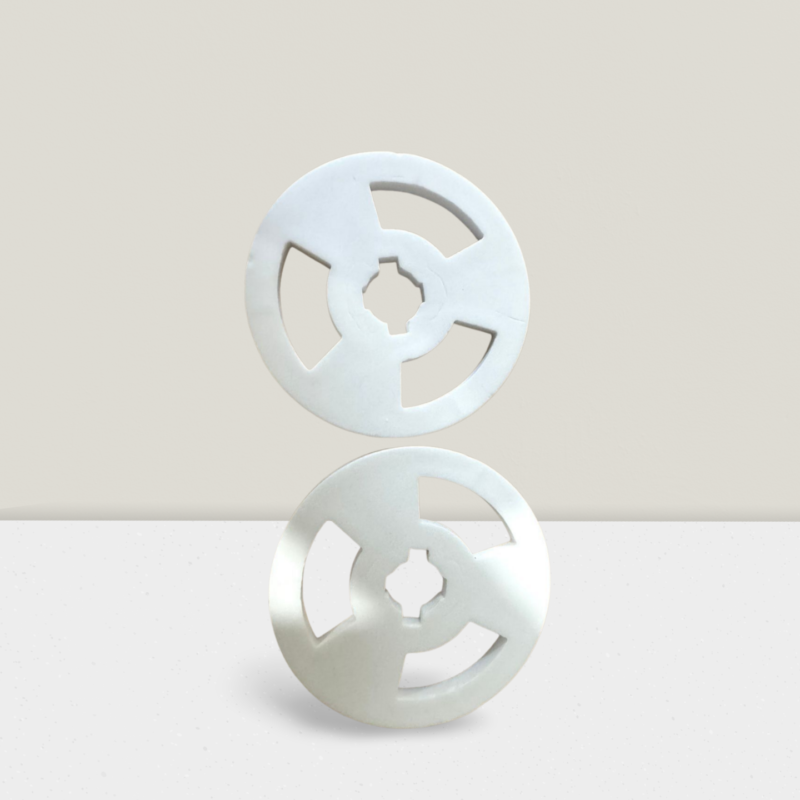

The 95% alumina ceramic washer locks with the ceramic spike using a positive locking mechanism at approximately 1/2” increments. The ceramic washer and spike can be held in the locking position by slight compression with the insulation.
Anchors for fibers with content 95 % Al2O3, the cerafix system is used with the presence of high corrosion with temperatures that can reach up to 1500°C.
Exists in 2 lengths CERAFIX 1 : 70 mm and CERAFIX 9 : 120 mm.
This system is used with a stud PRESSON M6 at the back.
Applications:
- High temperature reformers
- Laboratory furnaces
- Forging
- High temperature board applications
- Anchoring high temperature fabrics over insulation
- Corrosive environments
Properties | Units | 95% | 99% | 99.5% Al2O3 |
Colour | White | Ivory | Ivory | |
Density | g/cm3 | 3.5 | 3.85 | 3.9 |
Flexural Strength | Mpa | 280 | 340 | 350 |
Compressive Strength | MPa | 2100 | 2200 | 2350 |
Max Use Temperature | °C | 1400 | 1650 | 1650 |
Thermal Condutivity | W/m.K | 16~28 | 19~30 | 19-31.4 |
Thermal Expansion Cofficient | 10-6/°C | 6.5~7.5 | 6~8 | 8 |
Thermal Shock Resistance | K | 150 | 150 | 200 |
Specific Heat | J/kg.K | 950 | 950 | 950 |
Dielectric Strength | KV/mm | 10 | 12 | 18 |
Dielectric Constant | Er | 9 | 9 | 10 |
