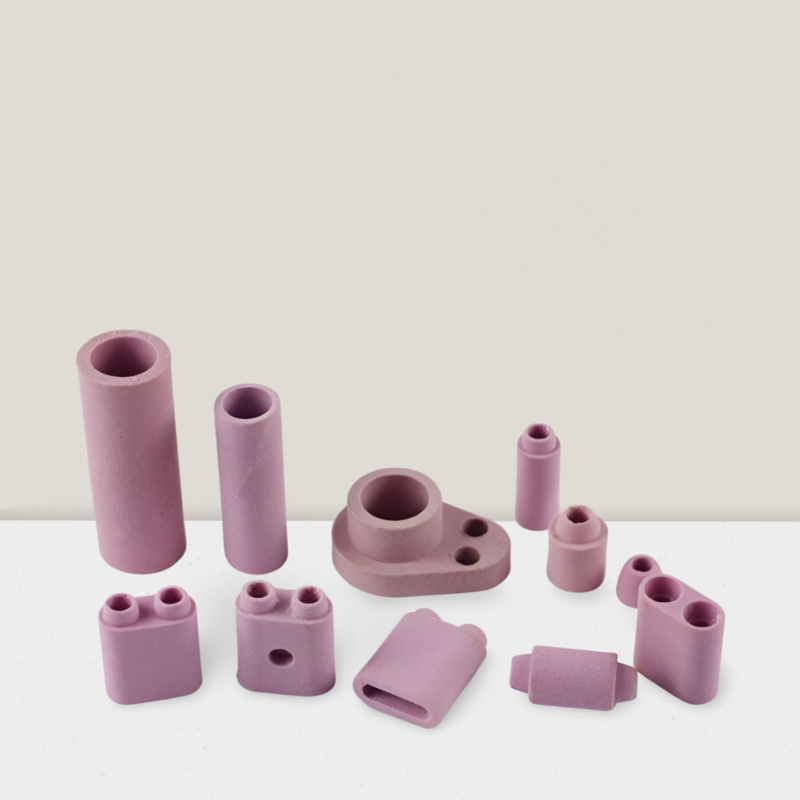

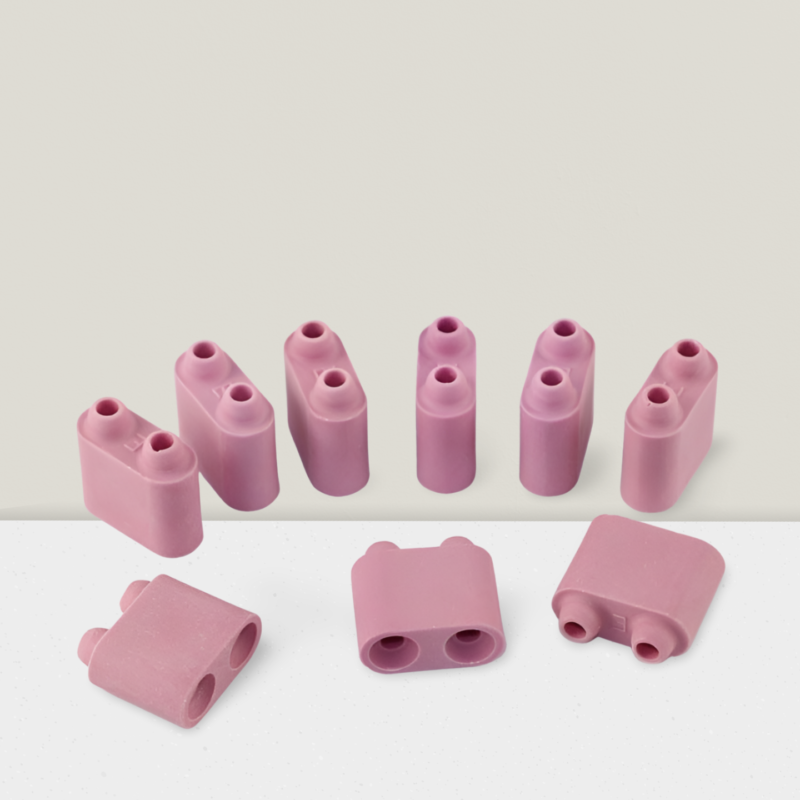

Ceramic beads for flexible ceramic pad heaters

Ceramic beads for flexible ceramic pad heaters

Ceramic beads for PWHT flexible ceramic pad heaters

Ceramic beads for flexible ceramic pad heaters

 We have:

  • Male beads
  • Female beads
  • Tail beads
  • Main body beads
  • Hole body beads
  • Cold end beads

Material: pink 95% alumina

These ceramic parts are used for PWHT flexible ceramic pad heaters.

Advantages:
  • Our ceramic pad heaters can be twisted, such as the heating of the vessel of pipeline; can be bent into a curved or circular cladding surface heating, such as heating of large workpieces, local recoverable cladding for a large area of the workpieces; can be tiled to cover in the form. In addition, suitable for a variety of geometric shape of workpiece heating.
  • The high mechanical strength, thermal insulation performance, to extend a longer life of the object which is heated contact surface
  • Easy maintenance, low costs

Properties

Units

95%
Al2O3

99%
Al2O3

99.5%

Al2O3

Colour

White

Ivory

Ivory

Density

g/cm3

3.5

3.85

3.9

Flexural Strength

Mpa

280

340

350

Compressive Strength

MPa

2100

2200

2350

Max Use Temperature

°C

1400

1650

1650

Thermal Condutivity

W/m.K

16~28

19~30

19-31.4

Thermal Expansion Cofficient

10-6/°C

6.5~7.5

6~8

8

Thermal Shock Resistance

K

150

150

200

Specific Heat

J/kg.K

950

950

950

Dielectric Strength

KV/mm

10

12

18

Dielectric Constant

Er

9

9

10
