Technical ceramics in textile machinery
Technical ceramics in textile machinery
Advanced ceramics for decisive advantages in yarn production

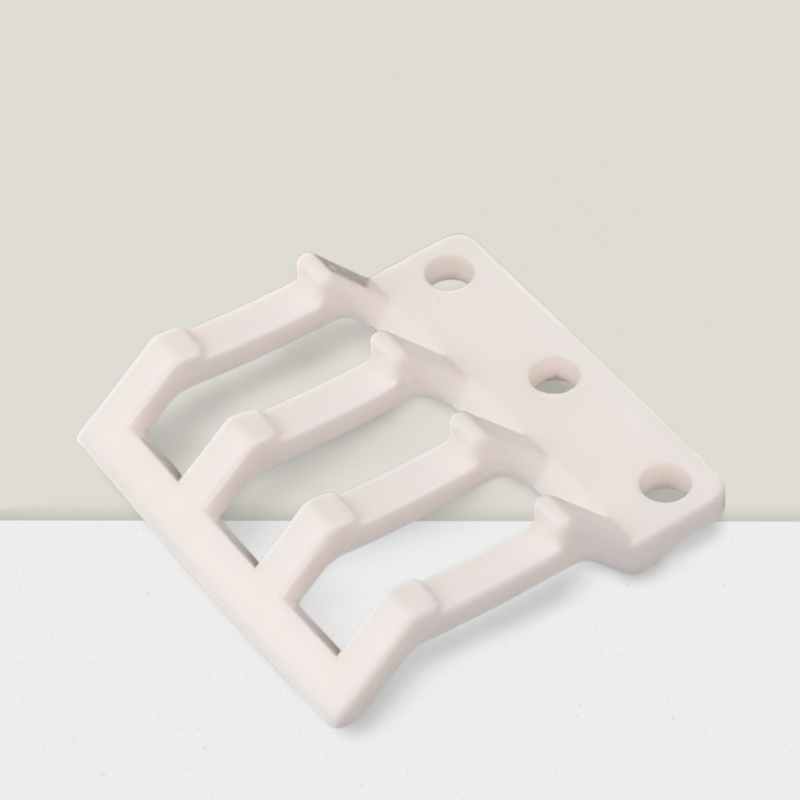

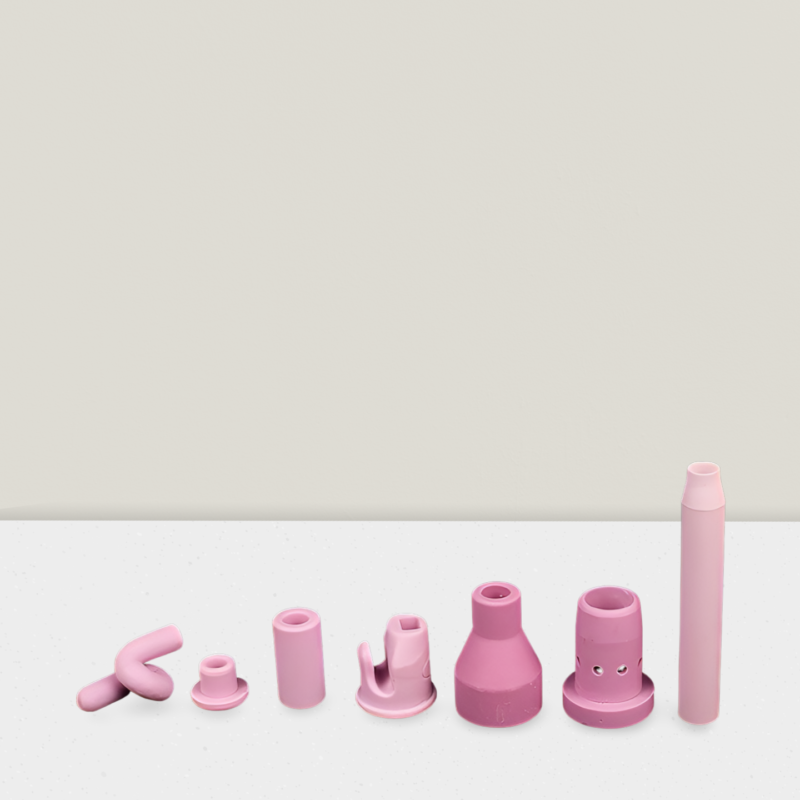

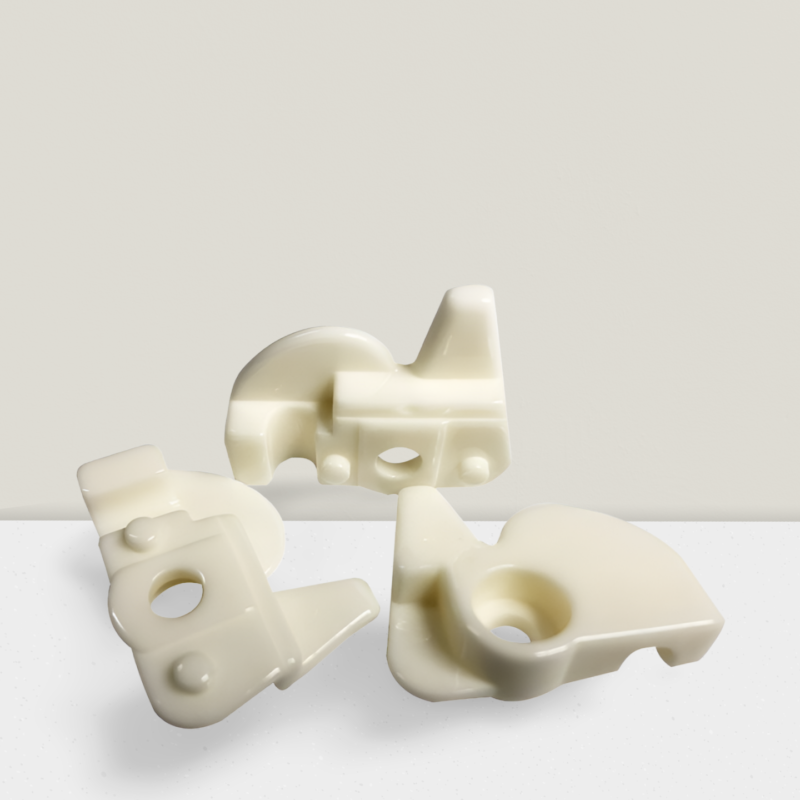

Main types of textile ceramic products:
1)Porcelain Eyelets
2)Rods and tubes
3)Rollers porcelain wheel
4)Pigtails Pigtail Guides
5)Slit guides
6)Hook guides
7)Traverse guides
8)Air jets
9)Oiling nozzles
Features:
1) A variety of specifications available
2) For textile machinery
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products and electric heating products
7) Support OEM
Properties | Units | 95% | 99% | 99.5% Al2O3 |
Colour | White | Ivory | Ivory | |
Density | g/cm3 | 3.5 | 3.85 | 3.9 |
Flexural Strength | Mpa | 280 | 340 | 350 |
Compressive Strength | MPa | 2100 | 2200 | 2350 |
Max Use Temperature | °C | 1400 | 1650 | 1650 |
Thermal Condutivity | W/m.K | 16~28 | 19~30 | 19-31.4 |
Thermal Expansion Cofficient | 10-6/°C | 6.5~7.5 | 6~8 | 8 |
Thermal Shock Resistance | K | 150 | 150 | 200 |
Specific Heat | J/kg.K | 950 | 950 | 950 |
Dielectric Strength | KV/mm | 10 | 12 | 18 |
Dielectric Constant | Er | 9 | 9 | 10 |
